Indoor Device Specifications
| Wi-Fi Standard | IEEE 802.11n IEEE 802.11g IEEE 802.11b |
| Frequency | 2.142 GHz – 2.472 GHz |
| Channel Width | 20/40 MHz |
| Data Rate | 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 300 Mbps |
| Antenna | 1x internal 1x external |
| LED Indicators | Power, LAN, WAN, WLAN, USB |
| Power requirement | 12V DC |
| Wireless LAN Security Key |
64/128 bit WEP WPA-PSK WPA-EAP (PEAP/TTLS) WPA2-PSK WPA2-EAP WPA Mixed 802.1x authentication |
| Operation Temperature |
-20 °C ~ 40 °C |
| Storage Humidity |
10 % ~ 90 % (Non-condensing) |
| Dimension(mm) | 93x70x26 mm |
| Weight | 74 g |
Outdoor 4G USB Specifications
| Data | LTE FDD: Max 150 Mbps (DL) / Max 50 Mbps (UL) LTE TDD: Max 130 Mbps (DL) / Max 35 Mbps (UL) DC-HSDPA: Max 42 Mbps (DL) HSUPA: Max 5.76 Mbps (UL) WCDMA: Max 384 Kbps(DL)/Max 384 Mbps(UL) EDGE: Max 296 Kbps(DL)/Max 236.8 Kbps(UL) GPRS: Max 107 Kbps(DL)/Max 85.6 Kbps(UL) |
| Antenna connector | N female |
| Interface | Mini-USB 2.0 Standard 6 PIN SIM card |
| LED Indicators | Power/Connection |
| Power required | 5V±5% |
Antenna Specifications
| Outdoor Antenna | Model: AOA-4G-5AM Frequency: 791-960 MHz 1710-2170 MHz 2300-2700 MHz Impedance: 50 Ω V.S.W.R: 3.0:1 Radiation: Omni Connector: N male Material: Fiber Glass |
| Indoor Antenna | Model: ARS-N05 Frequency: 2.4 GHz-2.5 GHz Impedance: 50 Ω S.W.R: ≤ 2.0 Gain: 5 dBi Radiation: Omni Connector: RP-SMA male Material: Rubber Length: 171.5 mm |
Supported 4G Band Information
| LTE FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 |
| LTE TDD | B38/B39/B40/B41 |
| WCDMA | B1/B2/B4/B5/B6/B8/B19 |
| GSM | B2/B3/B5/B8 |
ALFA 4G CampPro 2+ is the Global version. It’s easily to share your 4G data to multi-devices. With Global channel support, it means no matter you go, it can support any country 4G carrier.
 |
Share 4G data to multi devices through WiFi |
 |
Friendly Easy Setup |
 |
Vehicle Power Surge Protection |
 |
Solution for Boat & RV & Mobile House |

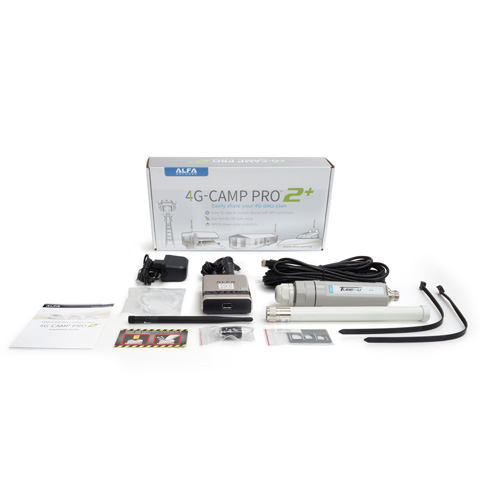

Package Contents

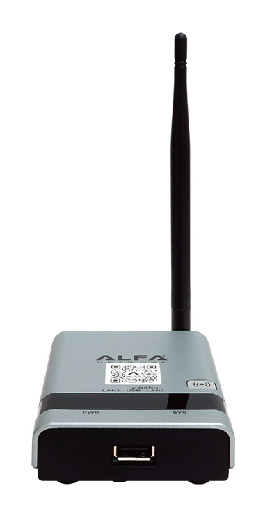

Indoor WiFi Extender
4G-CAMP PRO 2+
802.11n 300Mbps Wireless
USB Host for ALFA Tube-U4G
Vehicle surge protection

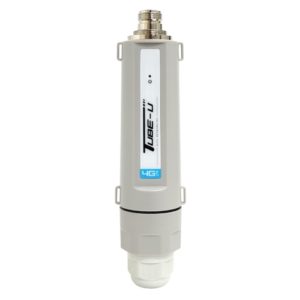

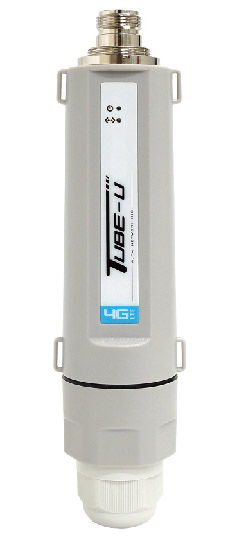

Outdoor 4G USB Modem
Tube-U4G
4G/LTE USB Modem
N female Connector
Weather-Proof IP55
Outdoor 4G Omni Antenna
AOA-4G-5AM
690-2700MHz
Outdoor Omni Antenna
N male connector

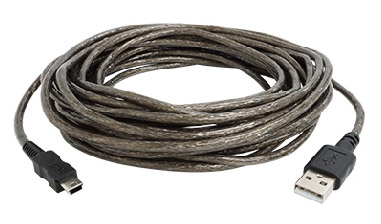

USB Cable
12V DC

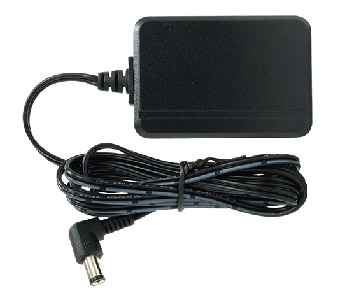

Power Adapter

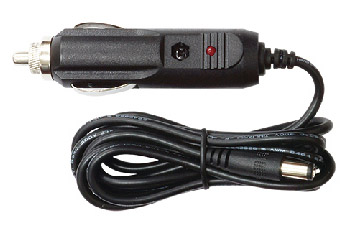

12V DC Car Charger
