| Chipset | RTL8814AU |
| Standard | 802.11a/ac/b/g/n |
| Frequency | 2.412 – 2.472 GHz 5.150 – 5.825 GHz |
| Host Interface | PCI-Express 1.1 Standard |
| Operating Voltage | 3.3 VDC |
| Power Consumption | Typical : 1A @3.3V |
| Antenna Connector | 4x U.FL Connector |
| Data Rate | 300 Mbps @ 2.4 GHz 870 Mbps @ 5 GHz |
| Environment Temperature | Operating: -20 °C to +55 °C Storage: -40 °C to + 80 °C |
| Environment Humidity | Operating: 10% to 90% Storage: 5% to 95% |

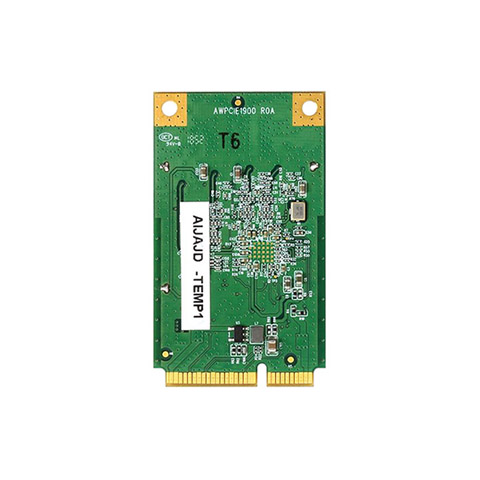

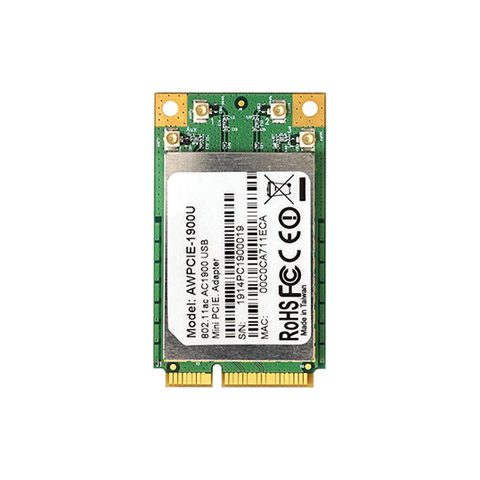

AWPCIE-1900U is the 802.11ac AC1900 USB to Mini PCIe adapter which use most common and high performance 4×3 Realtek RTL8814AU chipset. It support cross platform like Windows, Mac OSX and Linux, suitable for all kind of embedded application such as POS, Medical Machine, IOT..etc.
RF Specifications
Mini PCIe PIN Define
Mechanical Dimensions
