Length: 1.7m
Radial Length: approx.52cm
Weight: 1.2kg
Gain: 3.8dB
Max.power rating: 200W
Impedance: 50ohms
VSWR: Less than 1.5:1
Rated wind velocity: 60m/sec.
Mast diameter accepted: 30-62φ
Connector: MJ
Type: omnidirectional 5/8λ, FRP outershell

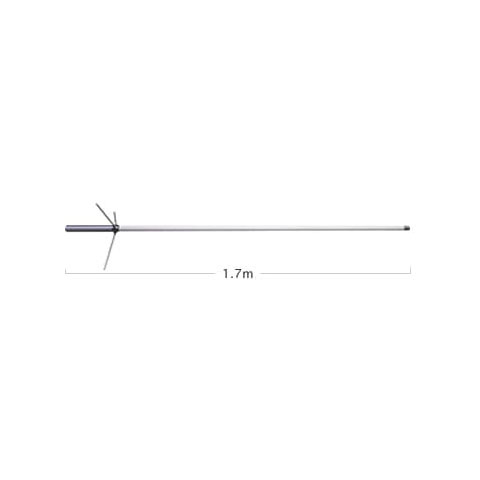

Diamond BC100 Antenna
- omnidirectional 5/8λ antenna
- For Base Station & Repeater
- 134 to 174MHz with Cutting Chart
- FRP outershell
- 3.8 dBi Gain
- 200 W Max Power Rating
- 60m/sec Rated Wind Velocity
Description
