Specifications:
Band: 2m/70cm
Gain (dB): 4.5/7.2
Max Power Rating: 200
Wind Rating: 135 MPH (no ice)
Height (feet): 5.6
Connector: UHF
Element Phasing: 3-1/4l, 3-5/8l

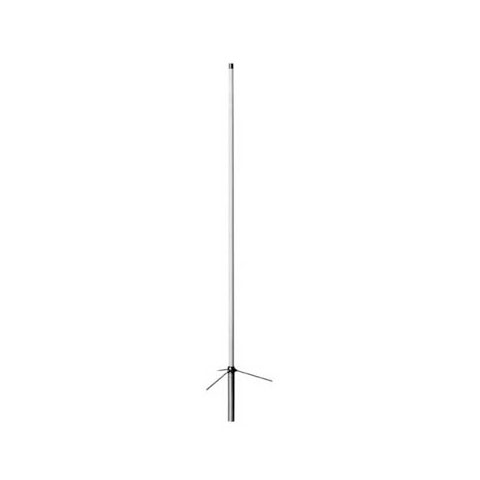

X50A Dualband Base/Repeater Antenna
The X50NA and X50A are excellent choices where ruggedness is required in a medium-gain, dual-band application.
Special Features:
- Fiberglass radome
- Stainless steel hardware
- Wide band performance
- Factory adjusted – no tuning required
- High wind rating
- DC grounded
